HMF SL300 300mm Frame

Features:

-1.6mm PCB center board, easy to install WSR.
-Dia.12mm carbon fiber arm with aluminum connector
-Motor tilt angle can change between -40 to 40 degrees

Specifications:

HMF SL300 300mm Tilt Rotor FPV Racing Quadcopter Frame Kit
-Wheel base: 300mm -Motor
angle: -40 ~ 40 degrees
-Weight: 240g

Recommended Setting (not included):
22004-2206 motor, 12A-20A ESC, 6040 propeller, CC3D or Naze 32 flight control

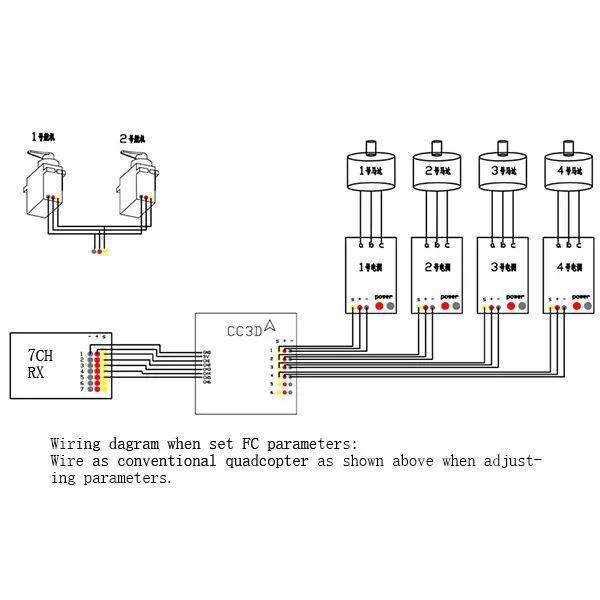

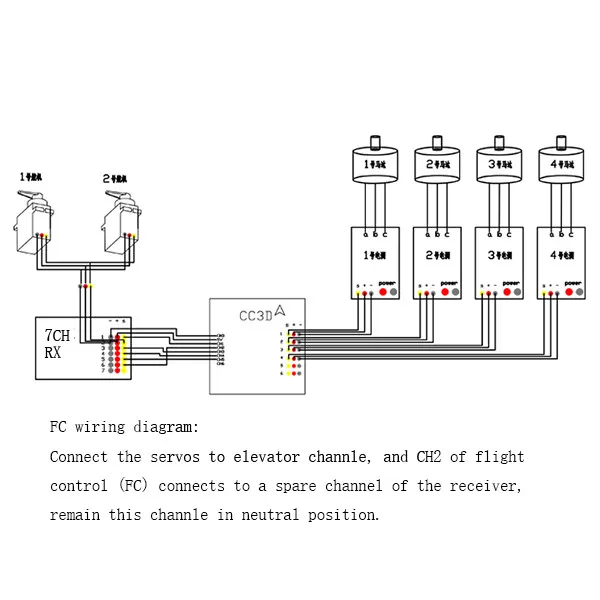

Electronic parts shown in the below diagrams are for showing the wiring method purpose only, and are not included.

Features:

-1.6mm PCB center board, easy to install WSR.
-Dia.12mm carbon fiber arm with aluminum connector
-Motor tilt angle can change between -40 to 40 degrees

Specifications:

HMF SL300 300mm Tilt Rotor FPV Racing Quadcopter Frame Kit
-Wheel base: 300mm -Motor
angle: -40 ~ 40 degrees
-Weight: 240g

Recommended Setting (not included):
22004-2206 motor, 12A-20A ESC, 6040 propeller, CC3D or Naze 32 flight control

Electronic parts shown in the below diagrams are for showing the wiring method purpose only, and are not included.

Includes:

• 1x lower board assembly
• 1x upper middle board assembly
• 4 x arm
• 4 x MOTOR MOUNT
• 1 x chassis
• 4 x white hood
• 1 x screw bag
