P2/3 Inspire 1batt.discharger

DJI Phantom 2 3 battery discharger realize intelligent battery discharge nanny 3S battery discharger

The discharger is not only can give DJI Phantom 2 3 INSPIRE 1 battery, you can also give a variety of model aircraft battery can put points, 1S-6S can also use when the phone charger Oh! Lightweight and convenient, stable performance, discharger of choice

A discharge plate parameters

1 ~ 6s discharge panel can give 1 ~ 6s battery discharge, discharge cut-off voltage of 3.8v, the actual discharge process will be closed at approximately 3.8v. Optional discharge current discharge panel 1A and 2A, but for 3s or less is recommended 1A battery discharge.

Second, the discharge panel LED display shows

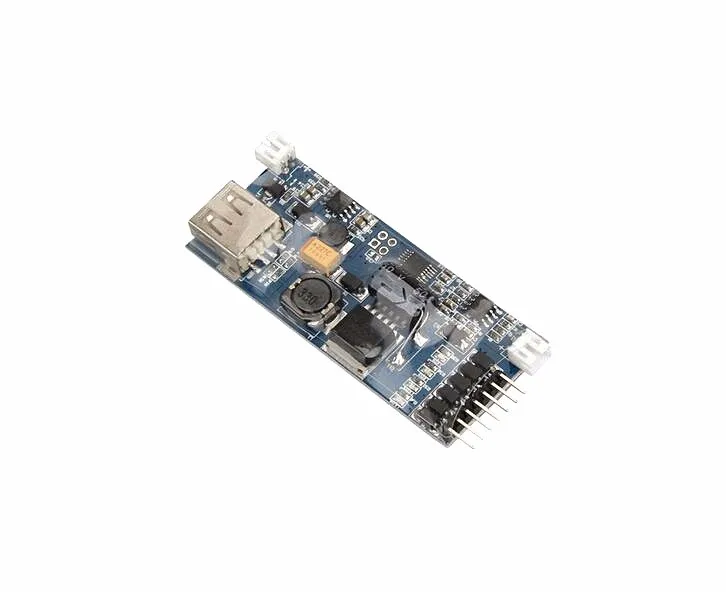

A discharge plate board above the four display LED, battery connected to the discharge panel when the automatic detection of a few S electric

Pool, according to the corresponding battery after testing has been completed by the current voltage LED display range which, when four LED full brightness, the average S battery voltage is 4.2V and above, that is, the battery is at 100%, the discharge plate located certainly per S battery voltage is less than or equal to 3.8V when the battery is 0%, then stop discharging. Between 4.2V and 3.8V battery power divided by average LED display, descending to 100%, 75%, 50%, 25%, 0%. When the discharge to 0% of the time, 4 LED full flashes.

Third, it can act as a mobile power use

Discharge board with a USB port, the USB ports can charge their cell phones. In using the USB port to charge the phone, please remove the load plate. To charge the phone mode, the battery will discharge to charge the phone has not been on average every S battery discharge voltage of 3.8V cutoff limit, please note!

Note :

battery is not include
